Products We Install
There is very little difference in the air conditioning equipment available in our area, but there is a huge difference in the knowledge and attitude of the installers & service techs.
At E&J Geothermal we are committed to installing your new system to factory specifications with a smile.
Enjoy the Benefits of Planned Maintenance
E&J Geothermal knows how much of an investment a new heating, air conditioning, air quality or geothermal system can be. That's why we want to help you protect your investment!
Click the button below to learn more about our maintenance plan!

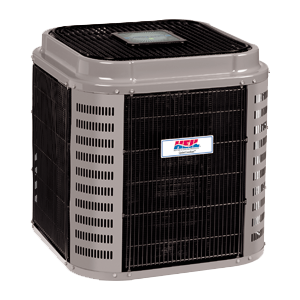

Service AgreementsHCA9 19SEER Two Stage Split Air Conditioners
Heil QuietComfort® DXT+ Two-Stage Air Conditioners featuring the Observer communicating system are designed to take your home to a new level of comfort and efficiency. Teamed with our Observer communicating wall control and a Heil communicating fan coil or gas furnace, the QuietComfort DXT+ functions as part of a complete communicating home comfort system. Various components of the system talk to each other electronically, fine-tuning comfort levels while maximizing energy savings.
- Copeland Scroll® UltraTech™ two-stage scroll compressors on all models
- Filter-drier supplied with every unit for field installation
- External high and low refrigerant service ports
- High and low pressure switches
- Outdoor temperature sensor factory installed
- Ball bearing ECM fan motors on all models
- High performance compressor sound shield standard
- Text based diagnostics with Observer Communicating Wall Control
- Factory charged with R-410A refrigerant
- High gloss, baked-on powder coat finish over galvanized steel
- Coated inlet grille with 3/8" (10mm) spacing for extra protection (hail guard)
| MODEL | Cooling Cap. MBtuH | SEER | Refrigerant Charge Oz. | Line Size | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|
| HCA924GKA1 | 24.0 | 19.0 | 213 | 3/8-7/8 | 46.9x35x35 | 323 |
| HCA924GKA2 | 24.0 | 19.0 | 213 | 3/8-7/8 | 40.1x35x35 | 253 |
| HCA936GKA1 | 36.0 | 19.0 | 219 | 3/8-7/8 | 46.9x35x35 | 283 |
| HCA936GKA2 | 36.0 | 19.0 | 219 | 3/8-7/8 | 46.9x35x35 | 283 |
| HCA948GKA1 | 48.0 | 18.0 | 216 | 3/8-7/8 | 46.9x35x35 | 306 |
| HCA948GKA2 | 48.0 | 18.0 | 216 | 3/8-7/8 | 46.9x35x35 | 306 |
| HCA960GKA1 | 60.0 | 16.7 | 229 | 3/8-7/8 | 46.9x35x35 | 306 |
| HCA960GKA2 | 60.0 | 16.7 | 229 | 3/8-7/8 | 46.9x35x35 | 306 |
Warranty Information
- for 120 months - No Hassle Replacement Warranty
- All Parts for 120 months -
Available Documents
- 338-8731.pdf (Color, Customer Information, Consumer Literature)
- 338-8732.pdf (In the Box, Installation & Operation)
- 338-8733.pdf (Technical Information, Specification Sheet)
- 338-8746.pdf (Customer Information, Owners Manual)
