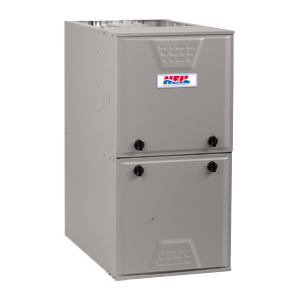

Service AgreementsG9MXT Two Stage Variable Speed Gas Furnace
Two-stage redundant gas valve and two-speed induced draft blower adjust to higher or lower settings when more or less heat is needed. Heated air is delivered by an efficient ECM blower motor. This model is also compatible with two-stage cooling. Advanced dehumidification capability can reduce additional moisture in the air when paired with an air conditioner or heat pump and a humidity-sensing thermostat.
- Xtra SEER ECM blower motor
- Supports single- and two-stage cooling units
- Dehumidification feature in cooling
- Certified 2% or less leakage of nominal air conditioning CFM delivered when pressurized to 1inch water column
- Stainless steel secondary heat exchanger
- High-quality, corrosion-resistant, one-piece steel cabinet
- Operates at quieter, lower heating rates
- Two−speed induced draft combustion blower
- Insulated steel cabinet
- Direct vent (2-pipe), single-pipe venting, or ventilated combustion air
- Four position − upflow/downflow/horizontal (left/right) installation
- Self diagnostics with super bright LED
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| G9MXT0401410A | 40.0 | 38.4 | 96.0 | 385 | 35x14.2x29.5 | 125 | |
| G9MXT0401712A | 40.0 | 38.4 | 96.0 | 330 | 35x17.5x29.5 | 135 | |
| G9MXT0601412A | 60.0 | 57.3 | 95.5 | 620 | 35x14.2x29.5 | 136 | |
| G9MXT0601714A | 60.0 | 57.6 | 96.0 | 530 | 35x17.5x29.5 | 146 | |
| G9MXT0801716A | 80.0 | 76.8 | 96.0 | 920 | 35x17.5x29.5 | 156 | |
| G9MXT0802120A | 80.0 | 76.8 | 96.0 | 795 | 35x21x29.5 | 161 | |
| G9MXT1002120A | 100.0 | 96.0 | 96.0 | 1105 | 35x21x29.5 | 171 | |
| G9MXT1202422A | 120.0 | 115.2 | 96.0 | 1215 | 35x24.5x29.5 | 195 |
Warranty Information
- for 60 months - No Hassle Replacement Warranty
- All Parts for 120 months -
- Heat Exchanger - Limited Lifetime
Available Documents
- 338-8715.pdf (Color, Customer Information, Consumer Literature)
- 338-8716.pdf (In the Box, Installation & Operation)
- 338-8717.pdf (Technical Information, Specification Sheet)
- 338-8722.pdf (Customer Information, Owners Manual)
