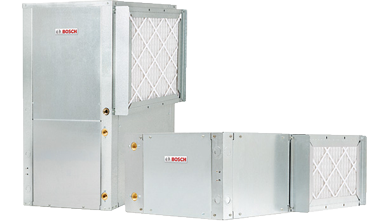

The SV Model is a cost-effective single stage water source heat pump designed for commercial retrofit and new construction applications.

Energy efficient – Meets ASHRAE 90.1 compliance
Copper aluminum fin coil
Specifically designed for replacement applications
Available in Vertical, Horizontal and Counterflow
Standard PSC motor
High and low pressure switches
Electronic circuit board with alert display which can also be displayed via the thermostat
G90 galvanized steel cabinet
1/2”, 1 1/2 lb. Dual density fiberglass insulation
Condensate overflow switch
Water coil freeze protection
Evaporator coil freeze protection

MODEL	Clg Capacity MBtuH	EER	Htg Capacity MBtuH	COP	Dimensions HxWxD	Weight Lbs.
SV007	6.8	15.1	4.9	3.4	24.25x19x19	96
SV009	8.7	14.6	5.7	3.2	24.25x19x19	100
SV015	11.8	14.0	8.7	3.1	24.25x19x19	105
SV018	21.2	15.8	14.3	3.5	32.25x21.5x21.5	136
SV024	25.0	15.5	17.0	3.4	32.25x21.5x21.5	174
SV030	31.0	15.3	20.9	3.2	39.25x21.5x21.5	181
SV036	39.9	16.9	26.9	3.5	43.25x21.5x26	190
SV041	41.2	15.6	29.4	3.3	39.5x21.5x21.5	236
SV042	42.6	14.5	31.0	3.2	43.25x21.5x26	231
SV048	48.8	14.9	35.4	3.4	45.25x24x32.5	274
SV060	60.1	15.0	46.9	3.2	45.25x24x32.5	288
SV070	66.4	15.0	50.8	3.4	58.25x26x33.25	316
