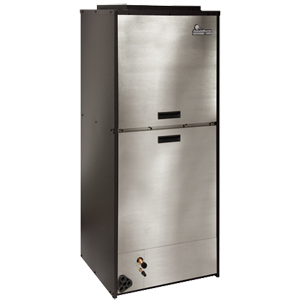

TAH Tranquility Digital Air Handler

The Tranquility Air Handler Series has among the highest efficiency ratings of any geothermal split system in the industry when matched with ClimateMaster Tranquility Indoor or Outdoor units. Tranquility Air Handlers are specifically designed and matched for use with Tranquility Indoor and Outdoor geothermal split units. Tranquility Air Handlers are available in vertical upflow or downflow, and horizontal left or horizontal right airflow.

  • Variable speed ECM fan motor adapts to various duct systems
  • Condensate over-flow protection
  • 230v and 115v field convertible
  • Fully field-convertible for vertical upflow, downfl ow, horizontal left and horizontal right airflow
  • Less than 2% air leakage
  • FP2 - air coil temperature sensor factory mounted
  • AHRI matched and rated with TEP, TES, and TTS products
  • Dehumidifi cation mode for high latent cooling (when matched with ATP32UO4 thermostat)
MODELTonsClg. Cap.
MBtuH
CFM MaxDimensions
HxWxD
Weight Lbs.
TAH026A2.0 24.0 1000 44x18.5x22 80
TAH026B2.0 24.0 1000 55x22.5x22 163
TAH038B3.0 36.0 1500 55x22.5x22 173
TAH038C3.0 36.0 1500 59x25.5x22 181
TAH049B4.0 48.0 2000 55x22.5x22 180
TAH049C4.0 48.0 2000 59x25.5x22 188
TAH064C5.0 48.0 2300 59x25.5x22 198

Warranty Information

  • All Parts for 120 months -
  • Limited Labor for 60 months -

Available Documents

  • View Document (Consumer Literature, Customer Information, Color)
  • View Document (Installation & Operation, Service Guide, In the Box)
  • View Document (Residential Product Line, Consumer Literature, Customer Information)
