Products We Install
There is very little difference in the air conditioning equipment available in our area, but there is a huge difference in the knowledge and attitude of the installers & service techs.
At E&J Geothermal we are committed to installing your new system to factory specifications with a smile.
Enjoy the Benefits of Planned Maintenance
E&J Geothermal knows how much of an investment a new heating, air conditioning, air quality or geothermal system can be. That's why we want to help you protect your investment!
Click the button below to learn more about our maintenance plan!

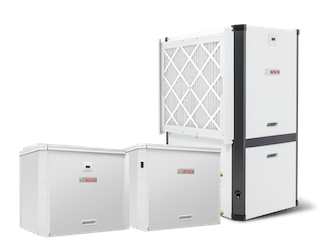

Service AgreementsGreensource CDi Series SM Models
Recognized as the most efficient by ENERGY STAR, this fully featured two-stage heat pump offers an appliance-style cabinet and in sizes of 2 to 6 tons. The Bosch Greensource™ geothermal heat pump requires less energy to produce the equivalent cooling and heating output of other heat pumps on the market. This saves energy and reduces the cost to stay comfortable in your home. You can save up to 70% on your energy bills, plus payback on this investment can be as short as 5 to 7 years.
- Tin-Plated Evaporator Air Coil: Extends the life of the evaporator in common to adverse indoor air quality environments.
- Floating Base Pan - For the lowest sound ratings
- Closed-cell Foam Insulation
- 2 Stage Compressor
- Constant Torque High-Efficiency Motor (optional)
- Variable Speed CFM Motor (optional)
- Filter Drier
- Easy Access Filter Rack and 2” MERV-11 Filter
- Sloped Stainless Steel Drain Pan
- Thermal Expansion Valve (TXV)
- Air Tight Cabinets
- Low and High Pressure Switches
- R410-A Refrigerant
| MODEL | Clg Capacity MBtuH | EER | Htg Capacity MBtuH | COP | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|
| SM024 | 29.0 | 26.5 | 23.5 | 4.9 | 44.7x24x27.4 | 260 |
| SM036 | 44.0 | 28.0 | 35.9 | 5.1 | 28.0x25.8x33.4 | 375 |
| SM048 | 55.3 | 25.3 | 46.3 | 4.7 | 28.0x25.8x33.4 | 355 |
| SM060 | 70.2 | 24.4 | 52.9 | 4.6 | 62.1x27.0x33.4 | 430 |
| SM070 | 78.7 | 23.1 | 70.0 | 4.5 | 62.1x27.0x33.4 | 460 |
Warranty Information
- All Parts for 120 months -
- Limited Labor for 120 months -
Available Documents
- 95-5672.pdf (Technical Information, Specification Sheet)
- 95-5673.pdf (Color, Customer Information, Consumer Literature)
- 95-5674.pdf (Detailed Technical Spec's, Technical Information, Specification Sheet, Submittal)
- 95-5956.pdf (SM Electric Heat Kit Installation Manual, Technical Information, Owners Manual)
