Products We Install
There is very little difference in the air conditioning equipment available in our area, but there is a huge difference in the knowledge and attitude of the installers & service techs.
At E&J Geothermal we are committed to installing your new system to factory specifications with a smile.
Enjoy the Benefits of Planned Maintenance
E&J Geothermal knows how much of an investment a new heating, air conditioning, air quality or geothermal system can be. That's why we want to help you protect your investment!
Click the button below to learn more about our maintenance plan!

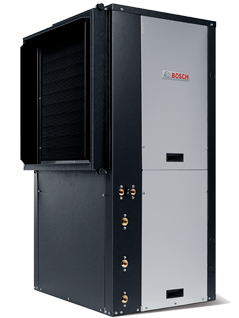

Service AgreementsGeo 6000 WA/WW TA & TW Series
TA Series The ultimate in performance! This luxurious two stage unit available from 2 to 6 tons features quiet comfort while its energy efficiency makes it the best-in-class in operating cost savings. TW Series This water to water unit with its exclusive design boasts industry leading efficiency at full load heating and cooling, but is even more efficient during part load operation.
- 2 Stage compressor
- Low cost operation
- Environmentally friendly R410-A refrigerant
- Quite operation
- Available in 2 through 6 tons
- Geothermal ready
- TA: Ultimate Performance
- TA: Vertical, c/flow, horizontal & split configurations
- TW: Extreme efficiency
| MODEL | Clg Capacity MBtuH | EER | Htg Capacity MBtuH | COP | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|
| TA025 | 31.0 | 32.5 | 32.5 | 6.5 | 47.25x21.5x26 | 330 |
| TA035 | 41.2 | 34.0 | 43.0 | 6.3 | 47.25x24x33.25 | 365 |
| TA049 | 56.0 | 32.5 | 53.0 | 6.2 | 58x26x33.25 | 445 |
| TA061 | 78.5 | 33.0 | 78.5 | 6.2 | 66.25x26x33.25 | 555 |
| TA071 | 78.0 | 28.8 | 89.0 | 5.2 | 66.25x26x33.25 | 645 |
| TW025 | 31.0 | 25.7 | 31.0 | 4.6 | 24.12x32.5x24 | 0 |
| TW035 | 43.0 | 24.5 | 43.0 | 4.7 | 24.12x32.5x24 | 0 |
| TW049 | 58.0 | 23.5 | 58.0 | 4.5 | 24.12x32.5x24 | 0 |
| TW061 | 74.5 | 23.3 | 56.0 | 4.7 | 24.12x32.5x24 | 0 |
| TW071 | 86.5 | 21.8 | 64.0 | 4.4 | 24.12x32.5x24 | 0 |
Warranty Information
- Compressor and Coils for 120 months -
- All Parts for 120 months - Assembled by Bosch
- Limited Labor for 120 months -
Available Documents
- 95-document_customer_info-4714.pdf (Bosch Geothermal Heatpumps, Consumer Literature)
- 95-document_customer_info-4715.pdf (Bosch Geothermal Heatpumps, Consumer Literature)
- 95-document_technical_info.pdf (Bosch Geothermal Heatpumps, Specification Sheet)
- 95-5305.pdf (TA Series Installation & Operation Manual, Installation & Operation, Owners Manual)
- 95-5307.pdf (TA Split Series Installation & Operation Manual, Installation & Operation, Owners Manual)
- 95-5308.pdf (TW Series Installation & operation Manual, Installation & Operation, Owners Manual)
- 95-5309.pdf (TW Series Specification Guide, Technical Information, Specification Sheet)
