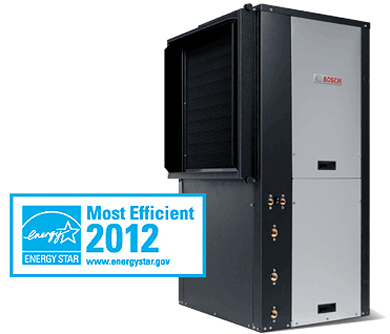

Service AgreementsGeo 1000 WA BP Series

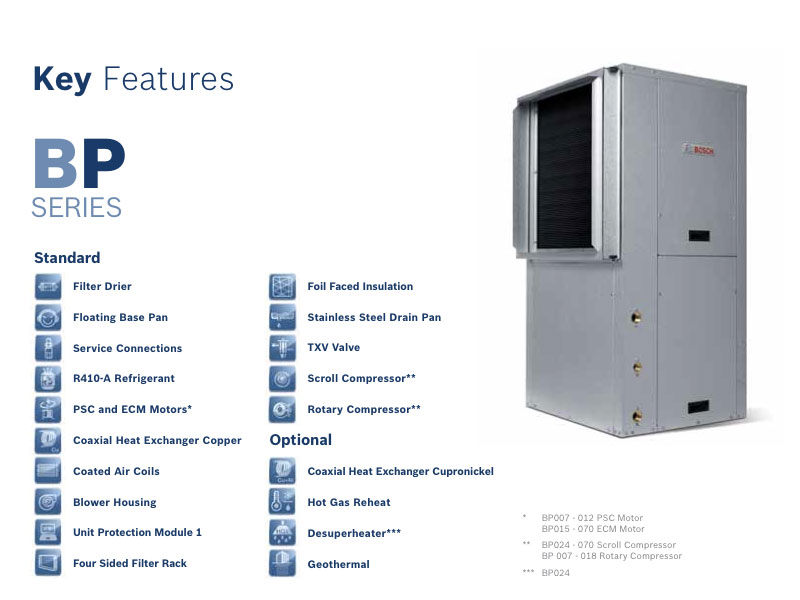

This single stage geothermal heat pump unit offers best-in-class energy efficiency and lower operating costs, providing you the ultimate value for your money.
- Filter Drier
- Floating Base Pan
- Service Connections
- R410-A Refrigerant
- PSC and ECM Motors
- Coaxial Heat Exchanger Copper
- Coated Air Coils
- Blower Housing
- Unit Protection Module 1
- Four Sided Filter Rack
- Foil Faced Insulation
- Stainless Steel Drain Pan
- TXV Valve
- Scroll Compressor
- Rotary Compressor
| MODEL | Clg Capacity MBtuH | EER | Htg Capacity MBtuH | COP | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|
| BP007 | 8.0 | 25.0 | 7.0 | 5.0 | 32.75x21.5x21.5 | 185 |
| BP009 | 11.0 | 26.0 | 9.0 | 5.0 | 32.75x21.5x21.5 | 192 |
| BP012 | 15.0 | 23.0 | 13.0 | 4.0 | 32.75x21.5x21.5 | 205 |
| BP015 | 17.0 | 29.0 | 13.0 | 5.0 | 39.5x21.5x21.5 | 218 |
| BP018 | 21.0 | 26.0 | 18.0 | 5.0 | 39.5x21.5x21.5 | 222 |
| BP024 | 28.0 | 28.0 | 24.0 | 5.0 | 47.5X24.25X26.24 | 340 |
| BP030 | 32.0 | 27.0 | 24.0 | 5.0 | 47.5X24.25X33.5 | 404 |
| BP036 | 40.0 | 26.0 | 34.0 | 5.0 | 47.5X24.25X33.5 | 415 |
| BP042 | 46.0 | 26.0 | 41.0 | 4.0 | 58.5X26.0X33.5 | 465 |
| BP048 | 54.0 | 26.0 | 41.0 | 4.0 | 58.5X26.0X33.5 | 470 |
| BP060 | 67.0 | 24.0 | 57.0 | 5.0 | 66.5X26.0X33.5 | 520 |
| BP070 | 71.0 | 22.0 | 71.0 | 5.0 | 66.5X26.0X33.5 | 562 |
Warranty Information
- Compressor and Coils for 120 months - Compressor and Refrigerant Circuit
- All Parts for 120 months -
- Limited Labor for 120 months -
Available Documents
- 95-b-1000color.pdf (Bosch Geothermal Heatpumps, Consumer Literature)
- 95-document_customer_info-4715.pdf (Bosch Geothermal Heatpumps, Consumer Literature)
- 95-5050.pdf (Technical Information, Quick Start Guide, Specification Sheet)
- 95-5051.pdf (Warranty Information)
- 95-5302.pdf (BP / CP Installation Operations Manual, Installation & Operation, Owners Manual)
